Pneumatic chain saw

Technical data

JFK-1 (II) pneumatic chain saw is a special tool for local construction, which has the characteristics of safety, explosion-proof, dust-free, and environmental protection.

Pneumatic cutting chain saw uses air compressor as explosion-proof power, no spark hazard, and the saw chain with nickel alloy or diamond cutter head as cutting carrier, which is very suitable for heavy load operation in danger environment, widely used in the cutting of plastic resin agglomerates in petrochemical polyolefin plants, as well as various soft and hard rock cutting with hardness ≤ 12MPa in offshore oil, underground coal mines, and mines, It is an ideal tool for cutting soft materials, coal seams, rocks, concrete, reinforced concrete, and pipes.

Because of its convenient operation and super horizontal cutting ability, it has been extended to the scope of fire fighting, emergency rescue, and other operations.

Its long, narrow and powerful cutting arm can easily complete the auxiliary excavation of shallow holes and the opening and opening of windows in case of emergency, and adapt to the cutting and shape cutting of various materials in the local construction of narrow space.

It is especially suitable for petrochemical olefin plants, chemical plants, offshore oil, underwater operations, wet environments, mines (underground), and no leakage risk operation.

Model Description

1.JF

2.K

–

3.I

4.II

Pneumatic chain saw

  • 1.JF:On behalf of Shenyang Jinfeng company.

  • 2.K:Represents the air compressor as the power (or on-site compressed air source).

  • 3.I:The representative motor and chain are lubricated by its own two-way lubrication system. The chain cutter head is made of hard alloy.It is professionally used for cutting plastic resin and wood, and cutting soft materials.

    Currently, there are 350mm and 500mm effective cutting length chains available.

  • 4.II:The representative motor is lubricated by an external air supply triplet, and the chain is lubricated and lubricated by a water pipe connected to it. The chain cutter head is made of diamond, suitable for cutting concrete and rock.

Host part description

  • Pneumatic motor

  • Chain

  • Chain plate fixing screw

  • Chain saw oil cavity

  • Chain saw oil cavity

  • Oil way regulating valve

  • Air supply control wrench

  • Chain adjusting screw

  • Chain plate

  • Handle switch

Features

  • 1. Easy to use: This machine adopts a single-person portable operation, with compact size and lightweight (mainframe is only 9kg).

  • 2.Wide range of operations: It is widely used in the cutting of plastic resin agglomerates in petrochemical polyolefin factories, the emergency rescue of rock-like materials, and is an ideal tool for cutting coal seams/rocks / reinforced concrete/pipes. 48 cm horizontal cutting ability can quickly open, slot and trim. The narrow cutting arm can penetrate blind or through holes up to 500 mm.

  • 3 No pollution: The air motor and chain are lubricated by its own two-way lubrication system, and there is no pollution on site.

  • 4 High security: The host is equipped with multiple personal injury protection devices. When the host is overloaded with force, it can resume normal work after unloading.

  • 5 Main driving components: High-speed pneumatic motors imported from abroad are adopted for stable operation and high efficiency.

  • 6 Mainframe operation is ergonomic: The mainframe is equipped with a clever power-assisted frame, which automatically converts the forward thrust of the operator into the downward cutting force of the chain saw, reducing the labor intensity of the operator. And the installation is easy to connect, each pipeline is equipped with a quick connector.

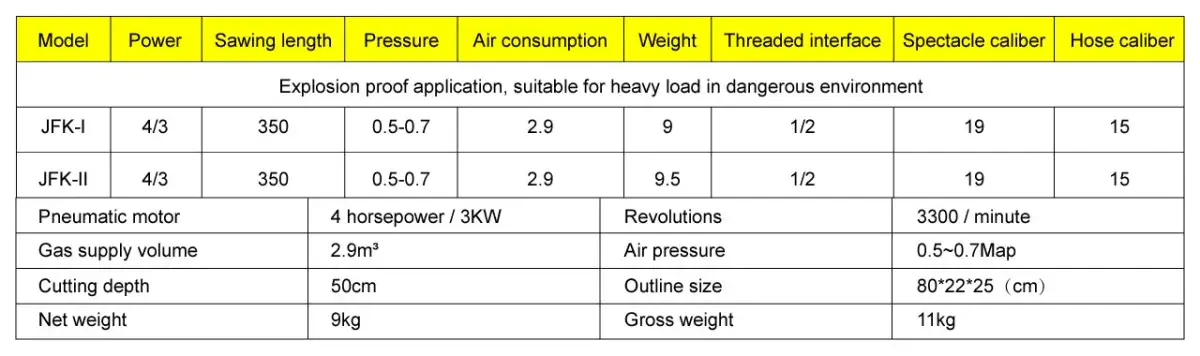

Technical Parameters
