Underwater Pelletizer Die Plates for PE and PP
Die plate dimensions and operating data
| Parameter | Existing product range |
|---|---|
| Outside diameter | 120–1500 mm |
| Die holes | 50–7000 |
| Hole diameter | 0.7–3.5 mm |
| Working pressure | Up to 30 MPa |
| Steam pressure | Up to 6 MPa |
| Thermal oil temperature | Up to 300 °C |
| Production line capacity | Up to 450,000 tons/year |
Underwater pelletizer die plates in this range process PE and PP, with applications including LDPE, HDPE, ABS, PC, PS masterbatch, EVA and SAN.
Product description

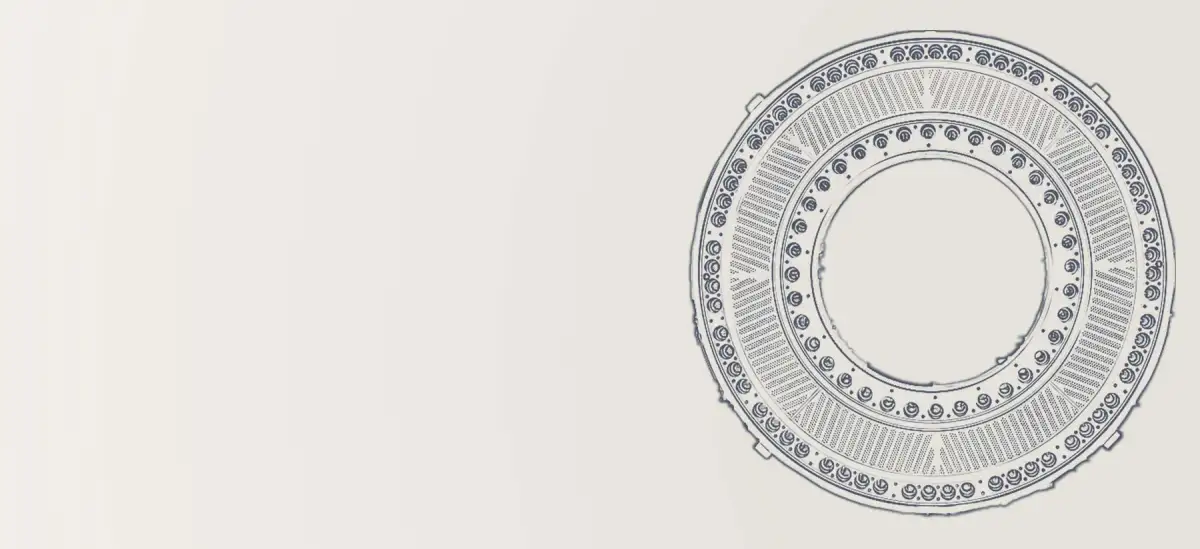

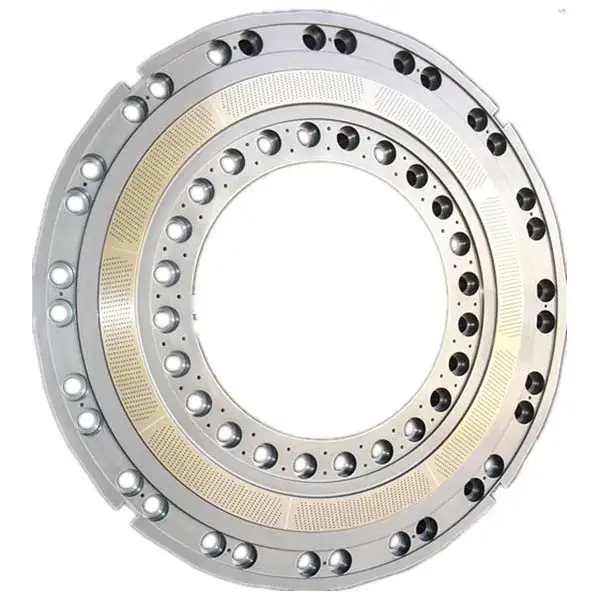

JINFENG manufactures underwater pelletizer die plates for extrusion pelletizing. The plate design is developed around the resin grade, granulation process and operating conditions of the production line.
Numerical simulation and finite element analysis support the design of hot runners, melt passages, die holes, insulation structures, cutting areas and the plate body.
Steam or thermal oil heating
The existing range uses steam at pressures up to 6 MPa or thermal oil at temperatures up to 300 °C. Heating requirements are considered with the process conditions when the die plate is designed.
Die plate repair
For an existing plate, explore JINFENG die plate repair technology before deciding on the next service step.
Full die plate reference list and engineering details: dieplates.com
Shenyang Jinfeng Granulation Die Plate Achievement Display
With the continuous improvement of the production capacity of single-machine granulation equipment in petrochemical enterprises, the diameter of granulation die plate gradually increased. In order to meet the market demand, the granulation die plate produced by Jinfeng Company for the domestic large granulation unit has been put into use in 2016 and has achieved one-off success.

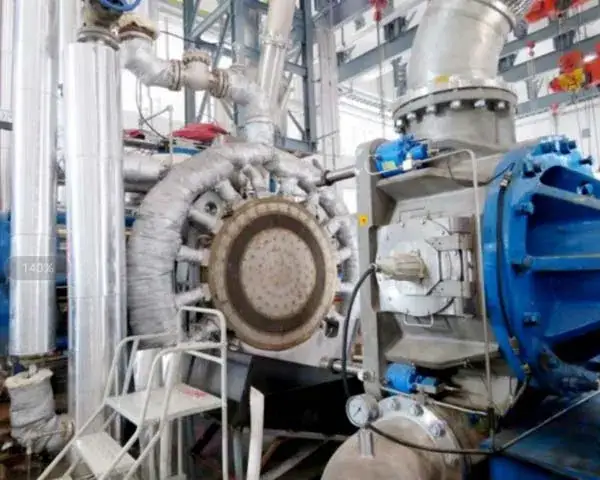

Fujian Refining Chemical 450000 tons of PE
| die plate outer diameter: | 1223mm |
| Number of holes | 6125 |
| Die plate thickness: | 112mm |
| Aperture: | Φ3.5 |
The granulating unit is produced by the German CWP company. The granulation die plate is well-granulated, the grain shape is uniform, and the surface is round and smooth.
Tianjin Zhongsha 450000t PP
| die plate outer diameter: | 1300mm |
| Number of holes | 2832 |
| Die plate thickness: | 160mm |
| Aperture: | Φ2.6 |
The granulating unit is produced by Japan Company, and the granulation die plate is well-granulated to meet customer requirements.
Ordos Zhongtian Hechuang 300,000 tons LLDPE
| die plate outer diameter: | 1300mm |
| Number of holes | 4560 |
| Die plate thickness: | 140mm |
| Aperture: | Φ3.4 |
Zhongtian Hechuang’s 300,000-ton LLDPE is currently a large-scale linear low-density polyethylene production line in China. The pelletizing unit is independently designed, produced and installed in China, and the die plate and cutter head are designed and manufactured by Jinfeng Company.
Technical reading for die plate selection
- Die plate selection guide
- Die hole diameter and arrangement
- Steam and oil heating
- Repair or replacement
For the cutting components that run against the plate, see underwater pelletizer knives.
Expert services
From design die plates to technical support and maintenance, we can help you improve the performance of your production line, expand production capacity, and increase profits.
